Heating / H-vac

H-vac

  • Proven Cooling– 25ton electric powered

  • Documented 18 degree+ temperature difference

  • Power requirement-(cooling) 50amp 208 3phase (heating) 80amp 208 3phase

  • Clean and Efficient-air is recycled for efficiency and air returns are filtered to ensure air quality

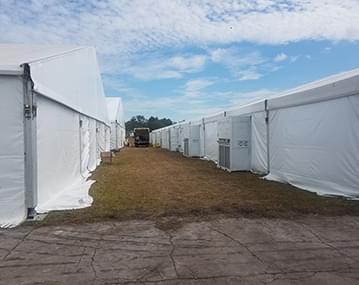

  • Custom Ducting-HVAC/AC units are ducted through space and vent holes are cut in to maximize cooling where required
  • Heating

  • Proven Heat-800K indirect fired

  • Documented 40 degree+ temperature difference

  • Fuel options– natural gas or propane

  • Power requirement-30 amp 208 3phase (can incorporated into temporary electrical)

  • Clean and Efficient-air is recycled for efficiency and filtered to ensure air quality

  • Custom Ducting-heaters are ducted through space and vent holes are cut in to maximize heat where required


Heater Specifications and Requirements
INDIRECT - FIRED “MODEL 800” Specifications
Output*
800,000 BTU/ Hr
Blower*
11,000 CFM @ 1/2”SP
Fuel
NG & LPG or Oil
Efficiency
82% NG 85% LPG
Fuel Consumption**
800 CU. Ft NG/hr Max @ 5 - 100 PSI (typical 600 CU. Ft NG/hr)
8.8 Gal LPG/hr Max (typical 24 Litres LPG/hr)
5.8 Gal Oil/hr Max (typical 18 Litres Oil/hr)
Inlet Duct Size
2 X 24”
Outlet Duct Size
2 X 24”
Electrical***
40 Amp Breaker, 230 V single phase
Optional
30 Amp Breaker, 208 V 3 phase
Dimensions
53”W X 72” L X 90”H.
Approx. Weight
1,800 lbs (820 KGs)
Pre-set Duct Temp Limit
Adjustable to 175 F (80 C)
Pre-set Upper Limit
240 F (115 C)
Pre-set Lower Limit
200 F (93 C)
* Measured at the end of Hot Air Duct
** Consumption will decrease as return air temperature rises and burner is cycled off.
Max consumption figures bases on continuous firing, followed by (typical operating values).
***Single phase starting current typically 120 Amps, continuous running 23 Amps.
